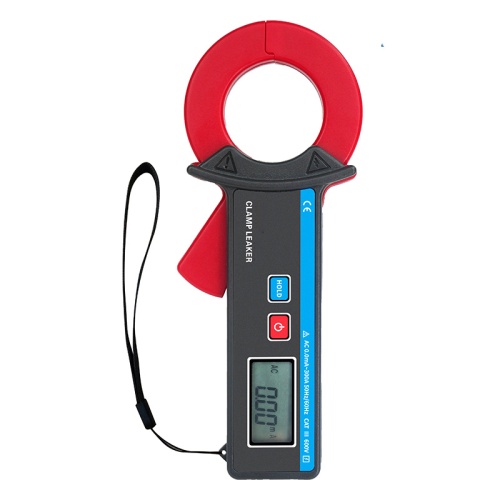

40mm CT Clamp Digital AC Clamp Meter Leakage Current Tester
Peak hold and Data hold40mm CT Clamp Digital Clamp Meter Leakage Current Tester
The iron core of meter adopts slope film alloy technology and double-layer shielding technology, almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year, which is widely used in fields of electricity, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching unit, industrial and mining enterprise, etc.
Mini Clamp Leakage Current Meter with peak hold, data hold, data storage and other functions.
Features:
A essential tool for electrical safety testing.
Double-layer shielding technology, high accuracy, strong anti-interference ability and 10uA solution
Peak hold function
Memory function.
Specification:
| Power Supply | Alkaline dry battery 7# 2 PCS |
| Display Mode | 4 digits LCD display |
| LCD Size | 35mm×21.5mm; display area: 32mm×15mm |
| Measurement Range | 0.00mA~300.0A |
| solution | 10uA |
| Measurement Accuracy | 0~60A: ±1.5%rdg±5dgt |
| 60A~300A: ±2%rdg±5dgt | |
| Clamp Jaw Size | Φ40mm |
| Meter Size | 180mm×72mm×32mm |
| Weight | Meter: about 200g(include battery); total weight: about 0.31kg(include accessory) |
| Test Mode | Clamp CT, integration method |
| Sampling Mode | about 2 times/second |
| Frequency | 50Hz, 60Hz Automatic identification |
| Shift Gear | Fully automatic shift |
| Line Voltage | Line measurement below DC 600V |
| Memory | 99 groups, flicker to display ”FULL” symbol indicate storage full |
| Peak Hold | Peak capture and hold function, long press HOLD key and not release can display peak value in measurement. |
| Data Hold | Data hold function: “DH”symbol display |
| Overflow Display | Exceed measure range overflow function: “OL”symbol display |
| Auto Shut Down | 5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption |
| Battery Voltage | While battery voltage decrease to about 2.8V,low battery voltage symbol display, and remind to replace the battery. |
| Working Current | 5mA |
| Insulating Strength | AC2kV/rms(between the core and outside shell) |
| Suitable Safety Standard | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |
| Working Temperature & Humidity | 0℃~40℃; below 80%RH |
| Storage Temperature & Humidity | -10℃~60℃; below 70%RH |
- Availability: In Stock
- Model: CLME-22041
- Brand: ROKTOOLS
