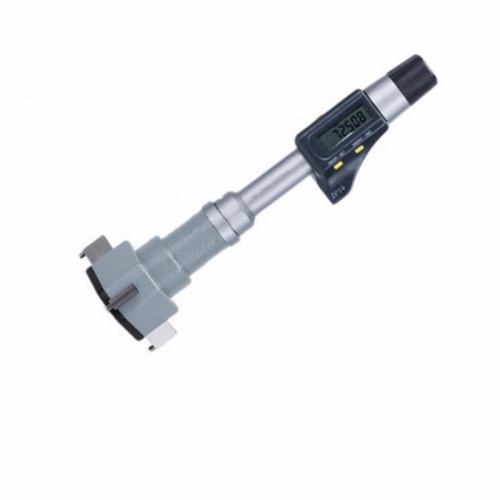

62-75 mm Electronic Three Point Inside Micrometer
62-75 mm
$358.99
62-75 mm Electronic Three Point Inside Micrometer
Features:
Self-aligning and self-centering
Supplied with extension and adjust setting ring
Large LCD display
MM/Metric
Specification:
Order No. | Range | Accuracy | Setting Ring | Measuring Depth | Rods |
IM-321201 | 6-8mm | 0.004mm | 6mm | 54.5mm | 100mm |
IM-321202 | 8-10 | 0.004mm | 8mm | 54.5mm | 100mm |
IM-321203 | 10-12 | 0.004mm | 10mm | 54.5mm | 100mm |
IM-321204 | 12-16 | 0.004mm | 16mm | 80mm | 150mm |
IM-321205 | 16-20 | 0.004mm | 16mm | 80mm | 150mm |
IM-321206 | 20-25 | 0.004mm | 25mm | 90mm | 150mm |
IM-321207 | 25-30 | 0.004mm | 25mm | 90mm | 150mm |
IM-321208 | 30-40 | 0.004mm | 40mm | 97mm | 150mm |
IM-321209 | 40-50 | 0.005mm | 40mm | 97mm | 150mm |
IM-321210 | 50-63 | 0.005mm | 62mm | 114mm | 150mm |
IM-321211 | 62-75 | 0.005mm | 62mm | 114mm | 150mm |
IM-321212 | 75-88 | 0.005mm | 87mm | 114mm | 150mm |
IM-321213 | 87-100 | 0.005mm | 87mm | 114mm | 150mm |
- Availability: In Stock
- Model: IM-321211
- Brand: ROKTOOLS
