AC 0mA~10000A Flexible Current Clamp Meter Amp Meter Switching Test

AC 0.1V~750V;DC 0.1V~1000V
$109.00
Qty:
Add to Cart Buy Now
Print

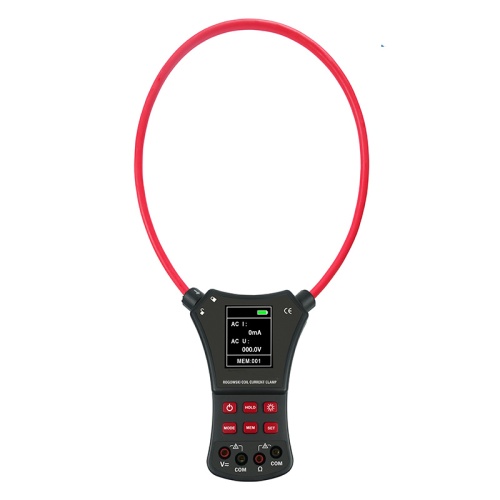

AC 0mA~10000A Flexible Current Clamp Meter Amp Meter Switching Test Tong Tester

Measurement Range & Error

Measurement ParameterMeasurement RangeMax. SolutionBasic Error
CurrentAC 0mA~10000A1mA±2%rdg±5dgt
DC VoltageDC 0.0V~1000.0V0.1V±1.5%rdg±5dgt
AC VoltageAC 0.0V~750.0V0.1V±1.5%rdg±3dgt
Resistance0.000kΩ~2.000kΩ1Ω±2%rdg±5dgt


Specifications

Power Supply6V DC(LR03×4 sections Alkaline dry battery)
Display Mode2.8 inch TFT true-color LCD Screen; display area: 58mm×44mm
Clamp Jaw Sizeφ200mm
Flexible Coil DiameterΦ7.5mm
Wire PositionThe measured wire is in the center position of the clamp.
Memory600 groups
Communication InterfaceUSB interface, can realize uploading stored data to the computer for easy data analysis.
Communication  LineLength 1.8m
Frequency50Hz/60Hz Automatic identification
Shift GearFully automatic shift
Sampling Rate2 times/second
BacklightYes, Press “*” key to control
Data HoldData hold function: “HOLD”symbol display
Overflow DisplayExceed measure range overflow function: “OL”symbol display
Automatic Shutdown10 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption
Battery VoltageWhile battery voltage decrease to about 4.8V,low battery voltage symbol display, and remind to replace the battery.
Meter Size200mm×370mm×35mm
WeightMeter: about 272g, total weight: about 755g(include battery & accessory)
Working CurrentBacklight on: 80mA; Backlight off: 40mA
Insulation LengthAC 3700V/rms(between the core and outside shell)
Suitable Safety StandardIEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
Working Temperature & Humidity-10℃~40℃; below 80%RH
Storage Temperature & Humidity-10℃~60℃; below 70%RH

  • Availability: In Stock
  • Model: CLME-22062
