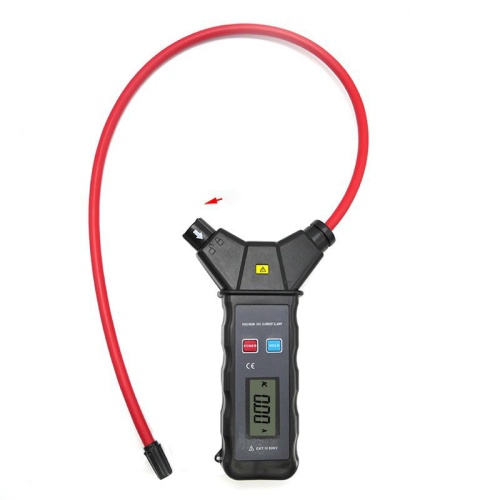

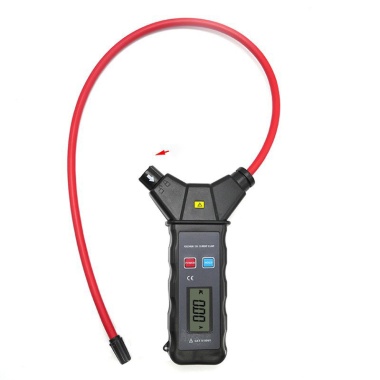

AC Flexible Current Clamp Meter 200mm Diameter Current Probe
Range: AC 0.00A~9999A
$82.00
AC Flexible Current Clamp Meter 200mm Diameter Current Probe For Large Size Conductor
Features:
- Small in Size, Light in Weight. large Compacity
- Flexible coil without any exposed metal conductors, small size, light weight, soft and flexible, suitable for large size conductor, narrow environment and cable dense place.
- No magnetic saturation, strong anti-interference ability. Especially suitable for the relay protection, silicon controlled rectifier, frequency conversion speed regulation, semiconductor switch, power electronic conversion equipment, arc welding and other industrial environment with serious signal distortion
- Automatically Identify Current Frequency
- IEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard)
- Peak value hold
Specification:
| Power Supply | Zn-Mn dry battery 6F22 9V |
| LCD Size | 35mm×21.5mm; display area: 32mm×15mm |
| Measurement Range | AC 0.00A~9999A |
| Solution | AC 10mA |
| Accuracy | ±2%rdg±3dgt(the wire is at the center of the flexible coil,23℃±2℃) |
| Coil Diameter | φ200mm |
| Coil Thickness | φ7.5mm |
| The Measured Current Frequency | 50Hz/60Hz(Automatic) |
| Backlight | with backlight, convenient to use in dark site |
| Meter Size | 190mm×370mm×40mm |
| Weight | Meter: about 200g(include battery);total weight: about 0.38kg(include accessory) |
| Electric Field Interference | No hysteresis effect, strong anti-interference ability |
| Position Error | The measured wire should be in the center of the flexible coil as far as possible, not close to the opening and closing mouth, the test error at the opening and closing mouth will increase by one times or more |
| Sampling Rate | 2 times /second |
| Memory | 99 groups,flicker to flash display "FULL" symbol indicate storage full |
| Peak Hold | Peak value capture and hold function, long press POWER key display peak value, and the peak value symbol display |
| Data Hold | Data hold function: "DH" symbol display |
| Line Voltage | Line measurement below AC600V |
| Overflow Display | Exceed measure range overflow function: “OL”symbol display |
| Battery Level | While battery voltage is lower than 7.2V. low battery voltage symbol display, remind to replace the battery |
| Rated Current | About 8mA |
| Insulation Resistance | 100MΩ or larger, 1000V |
| Suitable Safety Standard | IEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard) |
| Working Temperature & Humidity | -10℃~40℃; below 80%RH |
| Storage Temperature & Humidity | -10℃~60℃; below 70%RH |
- Availability: In Stock
- Model: CLME-22061
- Brand: ROKTOOLS
