Digital Depth Gauge Electronic Depth Caliper With Double Hook

Double Hook
$63.88
*
Qty:
Add to Cart Buy Now
Print

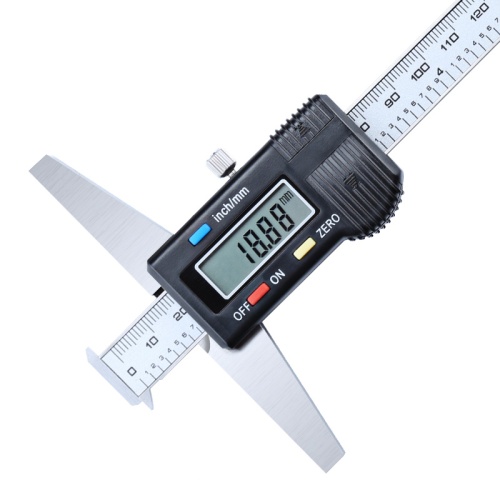

Digital Depth Gauge Electronic Depth Gauge With Double Hook

The DG-152 series possesses two hooks at both side of tips.  Can measure groove width and position of a groove, It can measure both side og grooves



Features:
* Manual power on/off.
* Zero setting at any position.
* Metric/Inch system conversion at any position.
* With date output interface.
* For depth,step,internal and external measurements.
* Data output
* Double hook Depth Gauge,
* Hook size can be OEM
* DIN862 Standard
* With ground surface.
* Base size upon customers request
* Linear scale embedded in stainless steel blade
Specification:
Range: 150mm, 200mm, 300mm
Order NoRangeResolutionAccuracyBase
DG-1520-150mm0.01mm /-0.03mm100mm or 150mm
DG-2520-200mm0.01mm /-0.03mm100mm or 150mm
DG-3520-300mm0.01mm /-0.04mm100mm or 150mm



  • Availability: In Stock
  • Model: DG-152
  • Brand: ROKTOOLS
