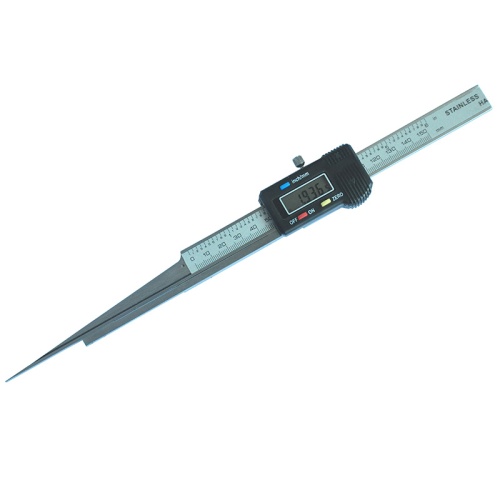

The gauge is designed for measuring gap with 0.01mm resolution, Especially for steam turbine gap. It is the same function as the mechnical one. but digital one is much easy to use and read the data. It is also refered to as digital feeler gauge in Power station.
Features:
--- To Measure the gap or groove. The same function as taper gauge without digital display.
---- Large LCD Display
---- suitable to different standard
---- For Power station use
---- High ground surface
---- Stainless steel
---- Packed with wooden box.
Manufacturer: ROK International Industry Co., Limited.
Specifcation:
Range: 0.2-10mm
10-20mm
20-30mm
30-40mm
Note: the real value must devide 10 . for example, The display show data 7. the real value is 0.7mm
Order No | Range | Accuracy | Resolution |
TAWG-70801 | 0.2-10mm | /-0.02mm | 0.01mm |
TAWG-70802 | 10-20mm | /-0.02mm | 0.01mm |
TAWG-70803 | 20-30mm | /-0.02mm | 0.01mm |
TAWG-70804 | 30-40mm | /-0.02mm | 0.01mm |
- Availability: In Stock
- Model: TAWG-70801,TAWG-70802,
- Brand: ROKTOOLS
